AWS - Running a Spring Boot Application on AWS EC2 Instance

This post describes about how you can deploy and run a spring boot application on AWS EC2 instance.

Generate Spring Boot Application
1. Generate spring boot application from here. Provide Group and Artifact detail and choose Generate Project. Note that this project is generated as a maven project by default . So you must ensure to have Maven in your local machine to build this project.

2. When you choose Generate Project, a zip file is downloaded with name aws-ec2-springboot.zip. Extract this file and import this maven project to your Eclipse IDE.

3. Now create the HelloController.java in this spring boot project.

package com.nv.aws.ec2.springboot.awsec2springboot; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; @RestController public class HelloController {     @RequestMapping("/")     public String index() {         return "AWS EC2 Springboot - Greetings from Spring Boot on AWS !!!";     } }

4. Open command prompt and go to the location where your project is imported. Now execute below command. This command builds and starts the spring boot application.

<YourDirectory>\aws-ec2-springboot>mvn clean install spring-boot:run

If you see below on your command prompt, this means your application is successfully started.



5. Try accessing application from your browser with below URL.
http://localhost:8080/

If this returns below page, your application is all set to be deployed on AWS EC2 instance.

Launch EC2 Instance
Now you need to launch EC2 instance on AWS. This post describes about how to launch a new Linux EC2 instance on AWS.

Java Installation on Launched EC2 Instance
To run a spring boot application on EC2 instance you need to make sure that java is installed on EC2 instance. Please refer this post to install java on linux EC2 instance.

Copy SpringBoot App to AWS EC2 Instance
Here we will use WinSCP to copy spring boot app from your local machine to AWS remote EC2 machine. We need .ppk file to connect to remote EC2 using WinSCP client. If you do not have .ppk file generated, please refer this post to have .ppk file. Now open WinSCP, connect to remote EC2 machine and copy spring boot application.

Start and Access SpringBoot App
Access EC2 machine using Putty. This post describes about how to access Amazon EC2 Instance from Windows using Putty. Once you are able to access EC2 machine, you just need to execute below command. Since you have copied your spring boot application at location /home/ec2-user/aws-ec2-springboot-0.0.1-SNAPSHOT.jar, so make sure that you run below command from this location /home/ec2-user/

java -jar aws-ec2-springboot-0.0.1-SNAPSHOT.jar

If you see below output, this means your spring boot application is successfully started on AWS EC2 instance.

Now finally use your EC2 IP to access web application on your browser.

http://<EC2-IP>:8080/

http://10.205.168.99:8080/

If it returns below output on browser, you are done with running spring boot application on AWS EC2 instance.  Great Job !!.

AWS - Accessing Amazon EC2 Instance from Windows using Putty

If you have already launched AWS EC2 instance and looking for option to access that instance from Windows machine using Putty, this post may help you.In case, you have not already launched the AWS EC2 server, not a problem. Please refer this post to launch the Linux EC2 instance on AWS.

Prerequisite
1. Make sure that you have already installed Putty on your windows machine. If not please download and install.
2. While launching the EC2 instance, you must have saved .pem file (step#8 in this post). But Putty uses .ppk file instead of .pem file. You need to generate .ppk file from .pem file. Follow below steps to generate .ppk file.

A) Open PuTTYgen (<yourDirWhereYourDownloadedPutty>\putty\PUTTYGEN.EXE)

B) Choose Load on the right side
C) Set the file type to *.*
D) Browse and open your .pem file
E) PuTTY will auto-detect everything it needs, and you just need to choose Save private key and you can save your .ppk file.

Accessing Amazon EC2 Instance using Putty

1.  Open putty (<yourDirWhereYourDownloadedPutty>\putty\PUTTY.EXE)

2.  Fill the IP of EC2 box. If you are not sure about EC2 IP, refer step#11 from this post to locate the EC2 IP.

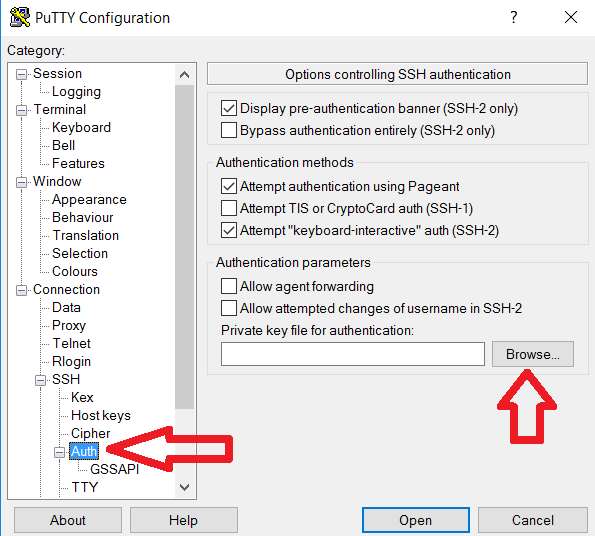

 3. Now you need to mention Auth file. Here you need to provide .ppk file that you just generated in prerequisite section above.

4. Once you choose Open, a dialog box is opened. Just select YES to connect to the server. When command prompt comes with login as, type user name as ec2-user  and enter. Now you are able to access the Linux machine you launched as EC2 on AWS.

AWS - Launching an Amazon EC2 Instance

This post describes about how to launch a new Linux EC2 instance on AWS.

About AWS EC2 Instance
EC2 stands for Elastic Compute Cloud. This is a virtual server/machine in Amazon's Elastic Compute Cloud where you can run applications on the Amazon Web Services (AWS) infrastructure.

How to Launch an Amazon EC2 Instance
1. First open AWS Management Console and login with your AWS account credentials.
2. Now under Services select EC2

3. Now click on Launch Instance

4. Now choose the AMI (Amazon Machine Image) you would like to launch. In this post we would launch SUSE Linux machine. In general AMI is like templates for instance. To know more about AMI please refer this link.

5. Now you have to choose an instance type. If you are just learning, you can choose free tier eligible (marked as green below), so that you are not charged for this. After choosing instance type, choose Next: Configure Instance Details.

To know more about instance types please refer this link. In general, instance types are different combinations of CPU, memory, storage, and networking capacity. Based on your application requirement, you can choose one of them.

6. Now in this step, you need to configure instance details. Before that you must learn about what is VPC and Subnet.  Once you have your VPC and Subnet created, you can choose accordingly. Now choose Review and Launch.
